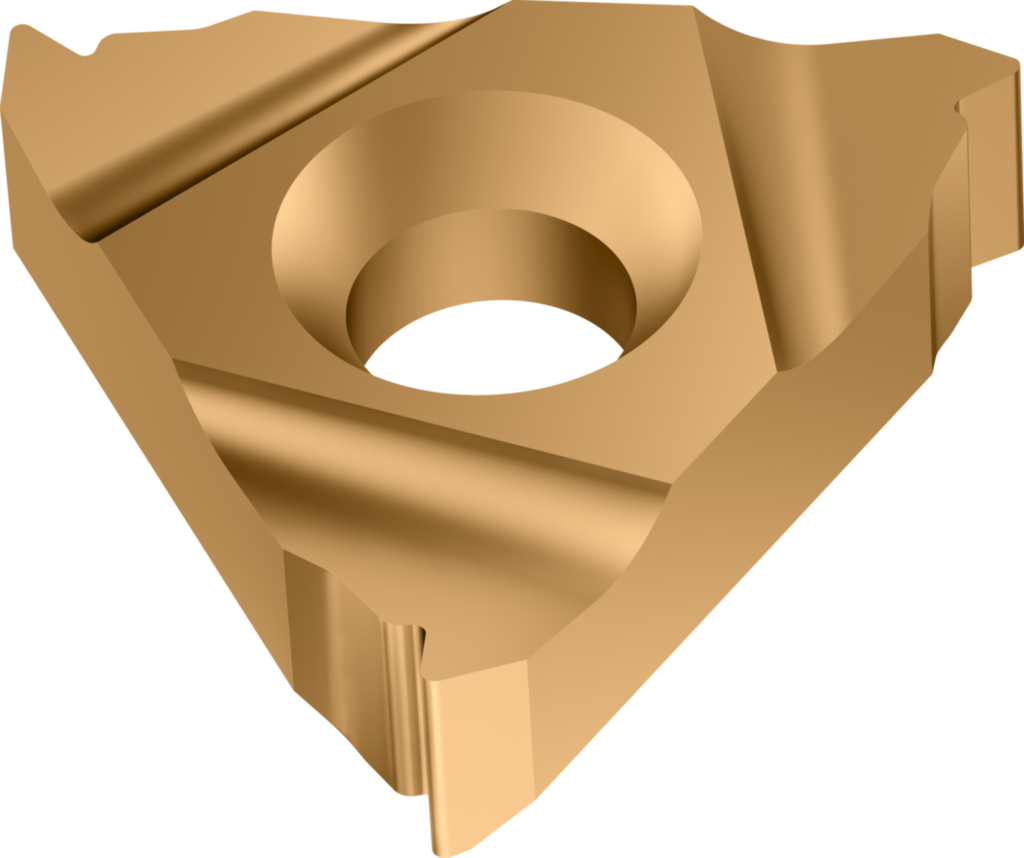

Außengewindedrehplatten – Vollprofil, American NPTF 60° TS16-ER18NPTF WMP32G
Walter
25,40 €
Produktnummer:
WA-8643148
Verfügbar - Mindestbestellmenge: 2 PCE
ANSI B1.20.3-1976
ANSI B1.4-1976
| P | M | K | N | S | H | O | |
|---|---|---|---|---|---|---|---|
| P11TS |
Produktinformationen "Außengewindedrehplatten – Vollprofil, American NPTF 60° TS16-ER18NPTF WMP32G"
Außengewindedrehplatten – Vollprofil, American NPTF 60° TS • rechts • Tiger·tec® Gold • WMP32G • Gangzahl je Inch=18

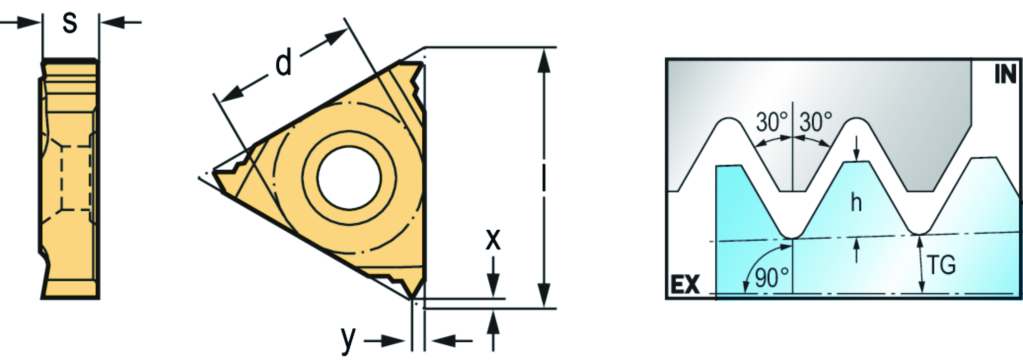

| Beschreibung | Name | Wert |
|---|---|---|
| Werkzeugbezeichnung | Bezeichnung | TS16-ER18NPTF WMP32G |
| Gang pro Zoll | TPI [Gang/Zoll] | 18 |
| Profilabstand ex | X | 0,7 mm |
| Profilabstand ey | Y | 0,8 mm |
| Zähnezahl | Z | 1 |
| Durchmesser – Inkreis | d | 9,53 mm |
| Tatsächliche Gewindehöhe | hmin | 1,05 mm |
| Schneidenlänge | l | 16 mm |
| Schneidplattendicke | s | 3,47 mm |
Downloads (externe Links zu Dokumenten)
Technische Daten und Spezifikationen
| Beschreibung | Name | Wert |
|---|---|---|
| Nach INSCPRFTHF - Profiled insert - Thread profile - full profile | ||
| Normalfreiwinkel, Hauptschneide | AN | 0 ° |
| Spanbrecher, Herstellerbezeichnung | CBMD | A27 |
| Anzahl Schneidecken | CNC | 3 |
| Befestigungslochdurchmesser | D1 | 4 |
| Eckenwinkel Schneidplatte | EPSR | 60 |
| Schneidstoffbezeichnung des Herstellers | GRADE | WMP32G |
| Normbezeichnung des Schneidstoffes, Hauptanwendung | GRDPRIO | - |
| Schneidplattenausführung | HAND | R |
| Eingeschriebener Kreis | IC | 9,525 |
| Trennstellenkodierung Schneidplatte | IIC | WR$$NTSE16$$2RA$$$$ |
| Winkellage, Aufnahme, werkstückseitig | KAP | 0 |
| Zähnezahl | NT | 1 |
| Profilabstand X | PDX | 0,8 |
| Profilabstand Y | PDY | 0,7 |
| Rotationswinkel phi | PHI | 0 |
| Profilwinkel | PNA | 60 |
| Eckenradius | RE | 0,04 |
| Rotationswinkel rho | RHO | 0 |
| Schneidkantenhöhe | S | 3,47 |
| Schneidplattendicke | S1 | 3,47 |
| Schneidplattenformcode | SC | T |
| Plattensitzkodierung | SSC | 16 |
| Ausführung und Anzahl bestückter Schneidenecken | TCE | S |
| Gewinderichtung | THDH | RIGHT |
| Gewindeart | THFT | NPTF |
| Gangzahl je Inch | TPI | 18 |
| Schneidenprofiltyp | TPT | F |
| Bildkennung | TSYC | TS-ER-FULL-PTF |
| Außen-/Innengewinde | TTP | E |
| Masse (Gewicht) | WT | 0,004 |
| Abstand XY-Ebene werkstückseitig | XYWD | 0 |
| Abstand XZ-Ebene werkstückseitig | XZWD | 0 |
| Abstand YZ-Ebene werkstückseitig | YZWD | -0,8 |
